Our Insights

Insights > Case Studies > Loutsis Creek Fish Passage

Loutsis Creek Fish Passage - Duvall, Washington (2020)

Enhancing Fish Passage with Composite Bridge Design

Project Highlights & Key Takeaways

Bridge System: Composite arch bridge using Fiber-Reinforced Polymer (FRP) tubes by Basalt International
Project Goal: Replace a 5-ft concrete culvert with a 51-ft composite span to restore fish passage
Habitat Restored: 3.1 miles of upstream habitat for Coho salmon, steelhead, and cutthroat trout
Installation Speed: SR 203 reopened in 34 days-half the time of comparable steel/concrete projects
Sustainability: Reduced concrete by ~90% and incorporated Type 1L low-carbon cement
Carbon Impact: Lightweight FRP materials cut transport emissions and equipment needs

Key Stakeholders

Owner: Washington State Department of Transportation (WSDOT)
Contractor: Goodfellow Bros., Inc. (GBI)
Material & Technology Supplier: Basalt International
Ecosystem Impact: Restored 3.1 miles of upstream habitat for Coho salmon, steelhead, coastal cutthroat trout

Recognition & Performance

Received AGC/WSDOT Honorable Mention and ASCE Local Civil Engineering Achievement awards
100-year service life with minimal maintenance and no corrosion

Project Summary

The Loutsis Creek Fish Passage project replaced an outdated concrete culvert beneath State Route 203 with an advanced composite-arch bridge system supplied by Basalt International. The transformation unlocked vital habitat, minimized traffic disruption, and delivered a high-performance infrastructure solution. The project cost approximately $4 million.

Challenge: Legacy Barrier to Fish Migration

A 5-foot-diameter concrete culvert embedded ~40 ft beneath the roadway blocked migrating fish in the Snoqualmie River watershed.
Thousands of similar culverts across Washington fragment aquatic habitats, hinder fish passage, and contribute to ecological decline.
Conventional culverts prioritize drainage over ecosystem function-resulting in unnatural flows, sediment issues, and mobility barriers for fish.

Solution: Composite Arch Bridge System by Basalt International

Innovation in design and materials:

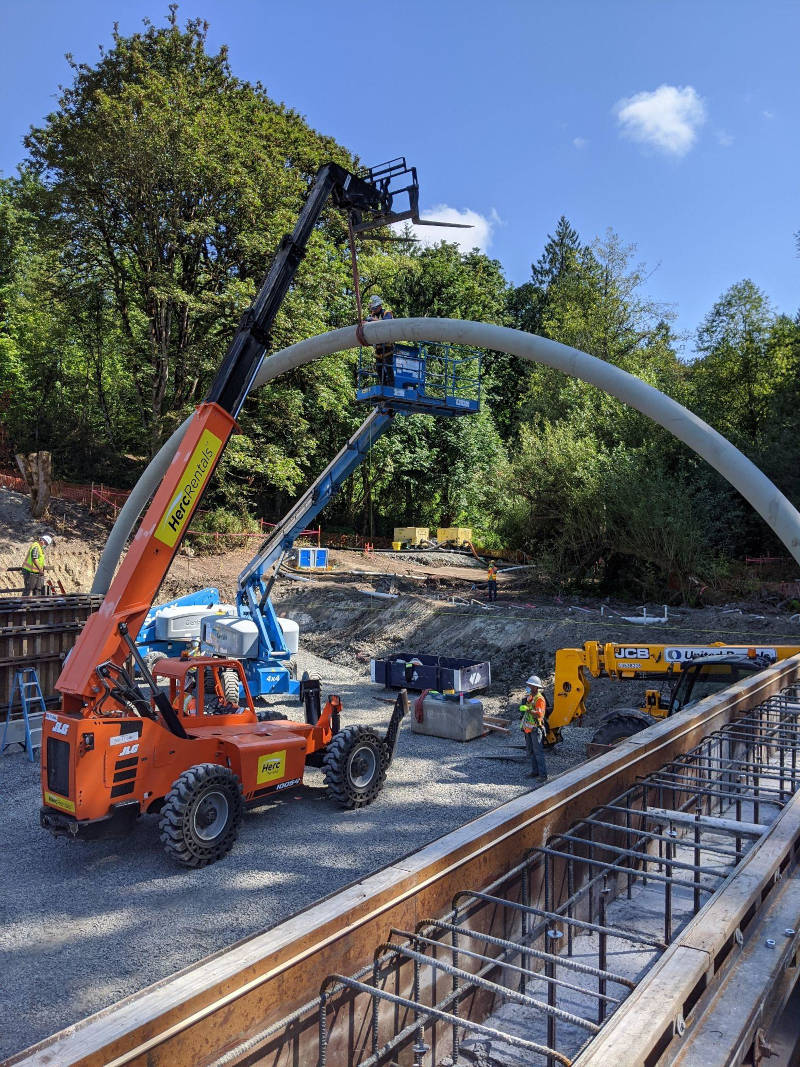

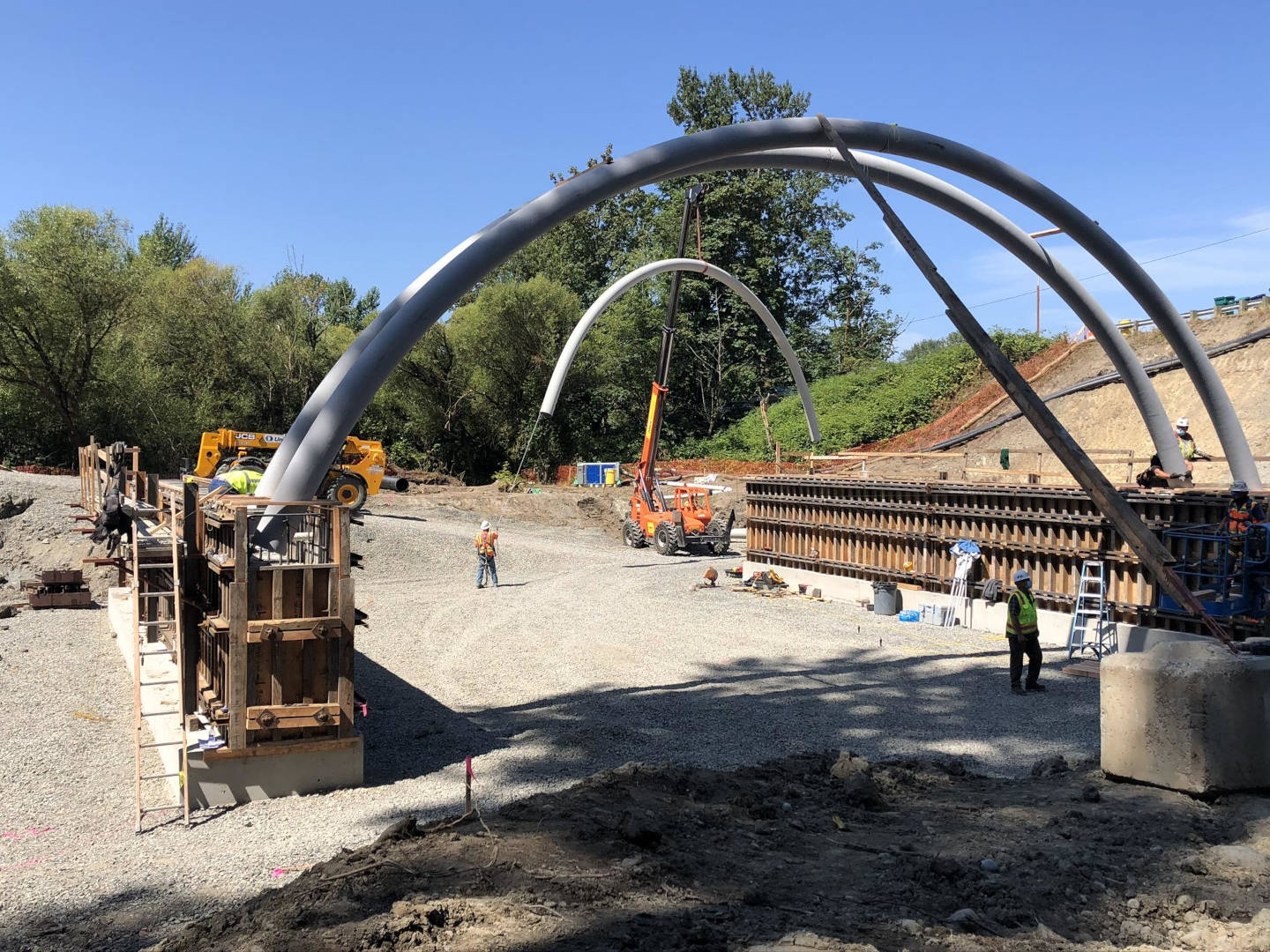

The system uses lightweight FRP (Fiber-Reinforced Polymer) tubes, each weighing approx. 300 lbs, allowing manual or forklift-based handling instead of heavy cranes.

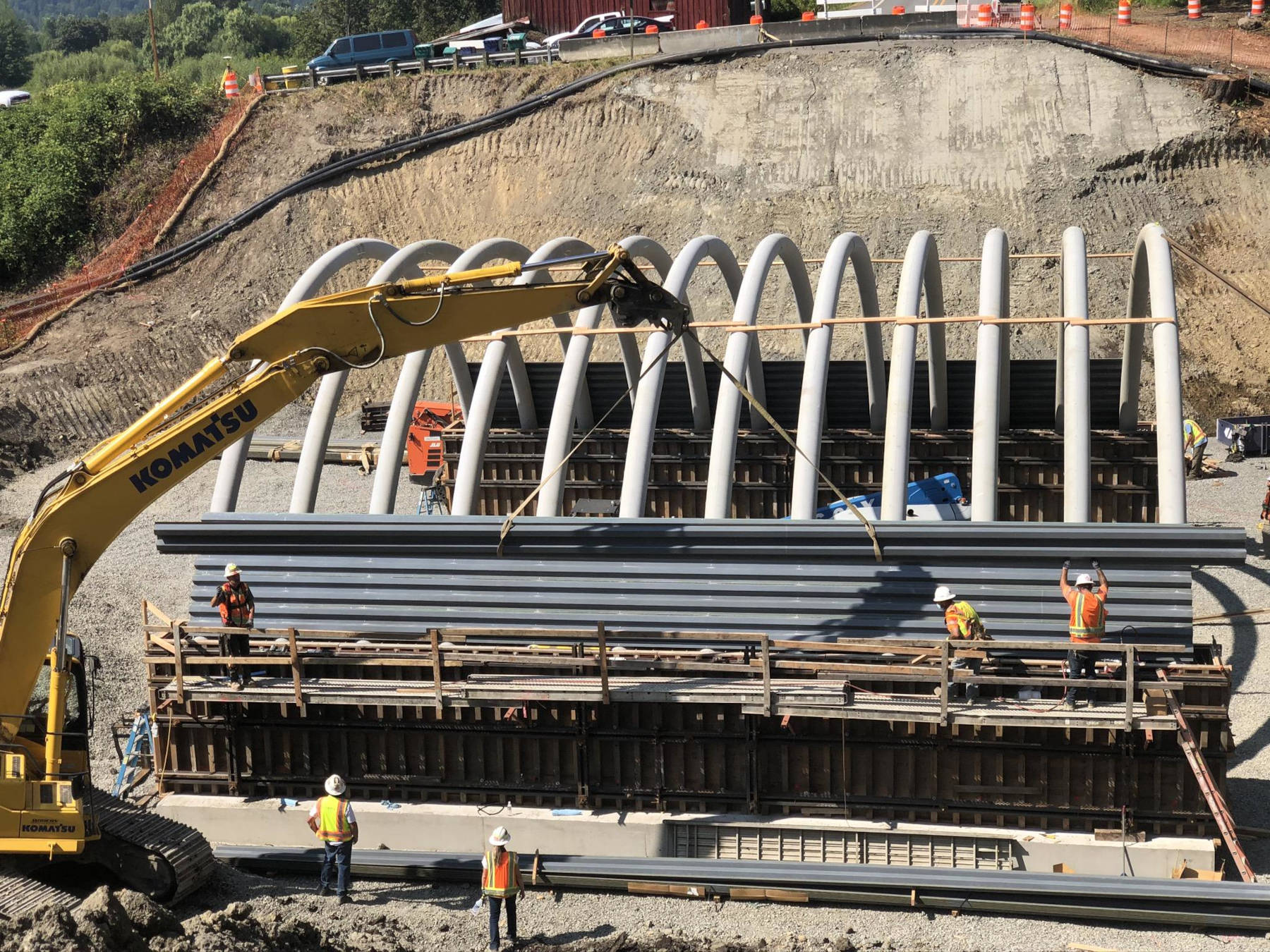

Transport logistics optimized: The arch structure was delivered in segments to avoid oversize permit issues. Assembly and installation occurred within 24 hours.

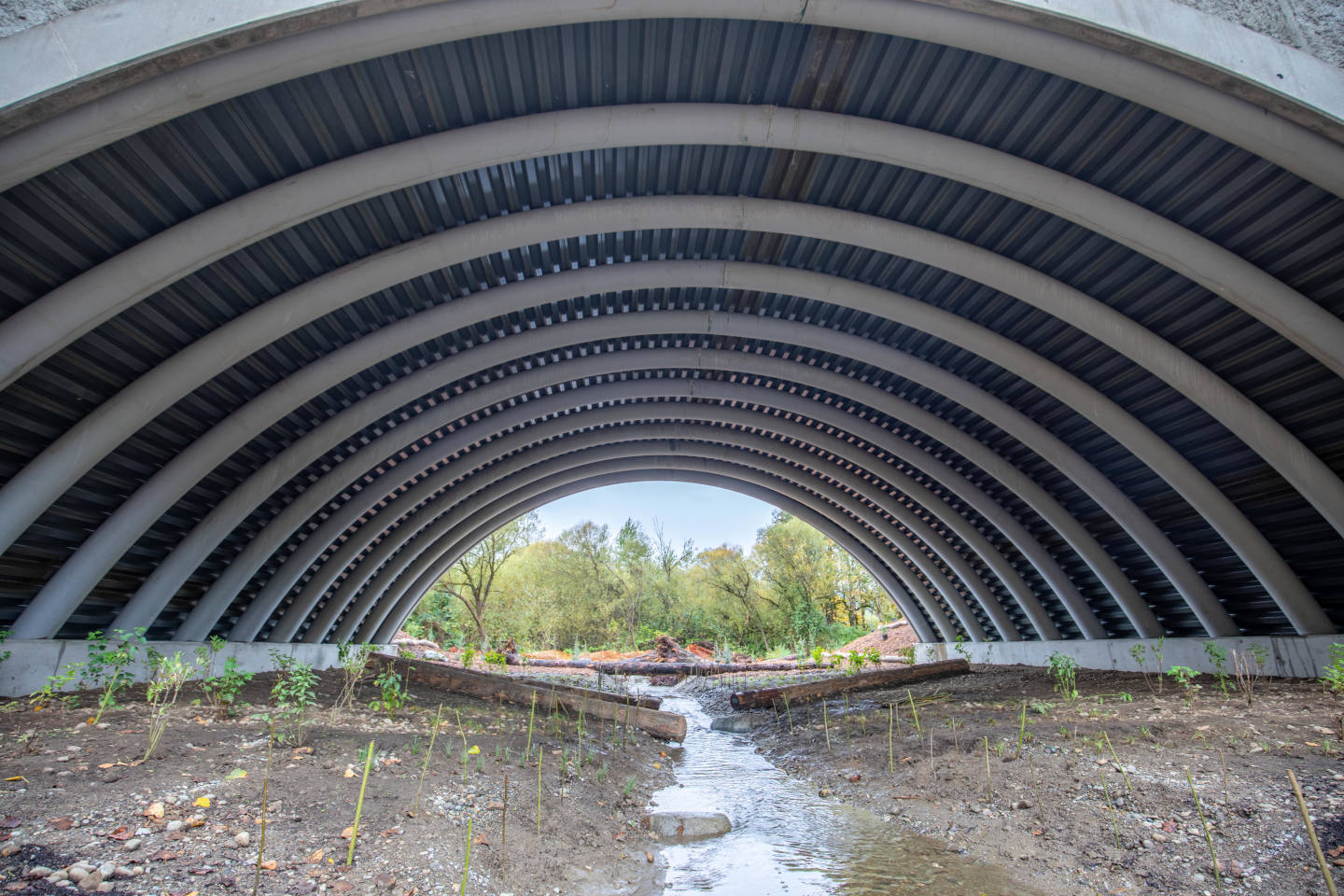

Span: A 51-ft wide bridge replaced the original ~6-ft span, enabling restoration of a natural floodplain and habitat corridor.

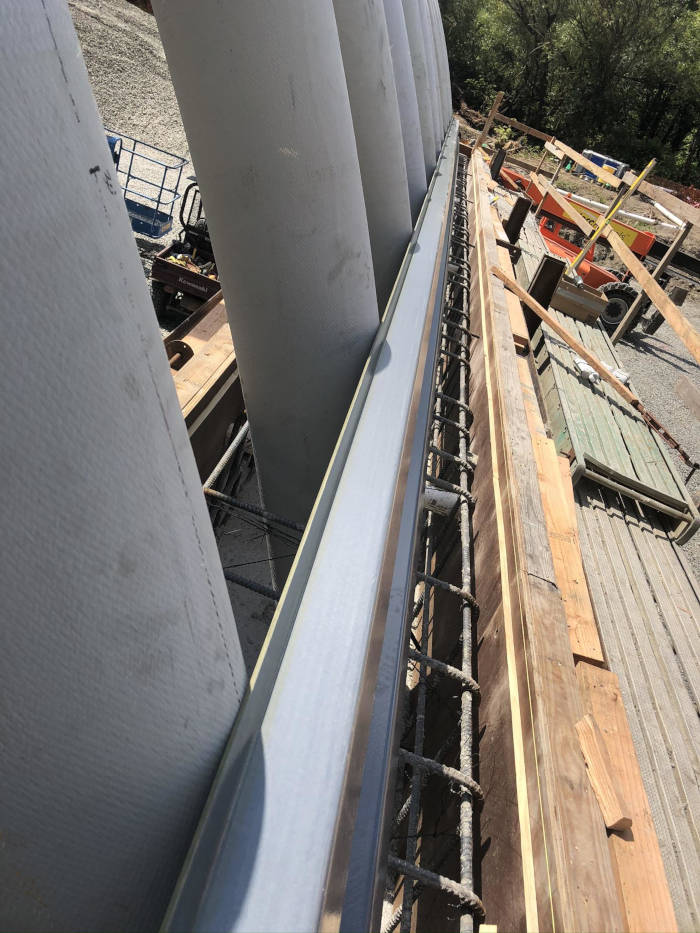

On-site technical support from Basalt International ensured precision during tube installation, decking application, and concrete fill.

Sustainability & Performance Highlights

Concrete usage reduced to ~10% of what a conventional buried arch would require.
Adaptation of Type 1L low-carbon cement in fill reduced embodied carbon while maintaining performance.
Project re-opened SR 203 after just 34 days-significantly shorter than comparable structures (60+ days).
Composite system projected service life exceeds 100 years, with minimal maintenance.
Enhanced resilience: corrosion resistance, seismic adaptability, reduced soil-settlement risk.

Differentiation vs. Traditional Structures

Feature	Conventional Buried Arch	Basalt International Composite Arch
Installation time	60+ days	34 days
Corrosion/maintenance	Susceptible	Corrosion-resistant, minimal upkeep
Carbon footprint	High (Portland cement intensive)	Low (FRP + low-carbon concrete)
Lifecycle	~50-75 years	100+ years
Transport weight	Heavy / oversize	Lightweight / permit-free

Outcome & Impact

Restored 3.1 miles of upstream fish habitat.
Traffic reopened in 34 days-reducing user-delay and community disruption.
Recognitions: Honorable Mention (AGC/WSDOT) and ASCE Local Outstanding Civil Engineering Achievement (Structures).
WSDOT has since replicated insights from this project across dozens of high-priority fish-passage sites.

Conclusion

The Loutsis Creek project-with Basalt International's Composite Arch Bridge System at its core-demonstrates how engineered materials and ecosystem restoration can converge. With a lightweight design, low-carbon materials, and streamlined installation, the project offers a blueprint for sustainable infrastructure that supports both mobility and biodiversity.
